Subwoofer And Amp Wiring Diagram : Speaker Wiring 1 Ohm Sub Wiring Diagram | Electrical Wiring / Amplifier wiring diagrams for power and speakers.. If the receiver/amplifier also has left and right rca plugs for. This is parallel woofer wiring. Skar audio assumes no responsibility for any damages to subwoofers and/or amplifiers that could occur due to improper wiring. Two 4 ohm speakers = 2 ohm load. As the diagram shows, the new impedance of the combined load (or combined speaker wiring) is half of the individual car subwoofer impedance.

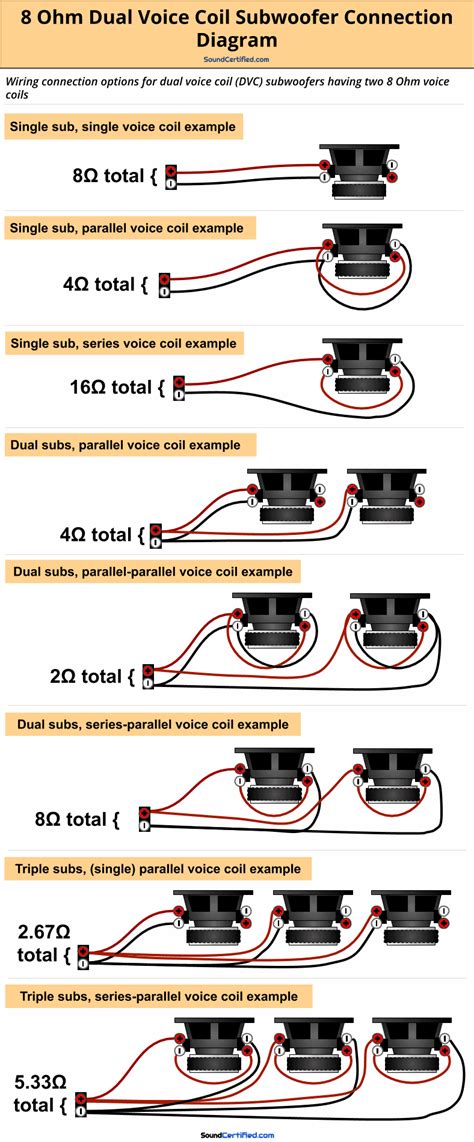

Two 16 ohm speakers = 8 ohm load. shop for car amplifiers wire. We have collected wiring diagrams of several configurations for dual voice coil (dvc) drivers. Whether your wiring your amplifier with preamp out input or using the radio amplified speaker output to drive your amplifier. Side view of amplifier audio input terminal view, may vary from model to model.

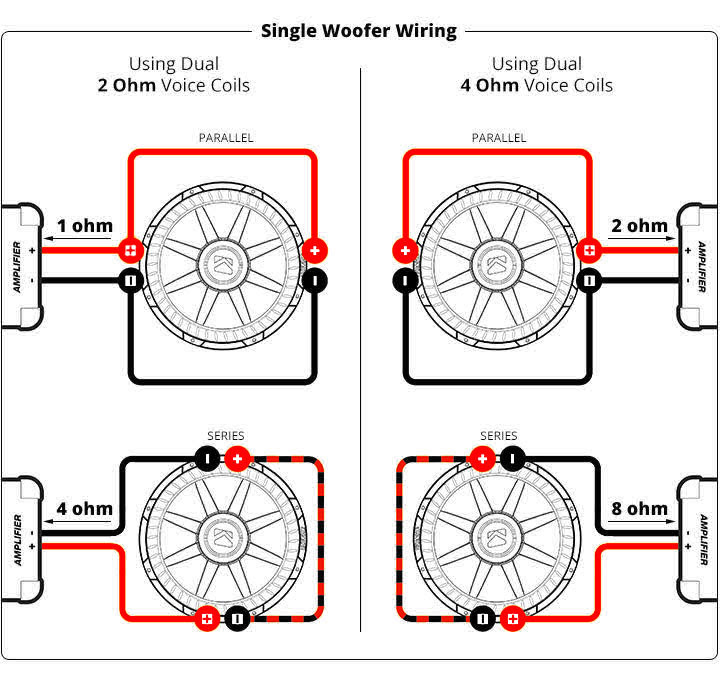

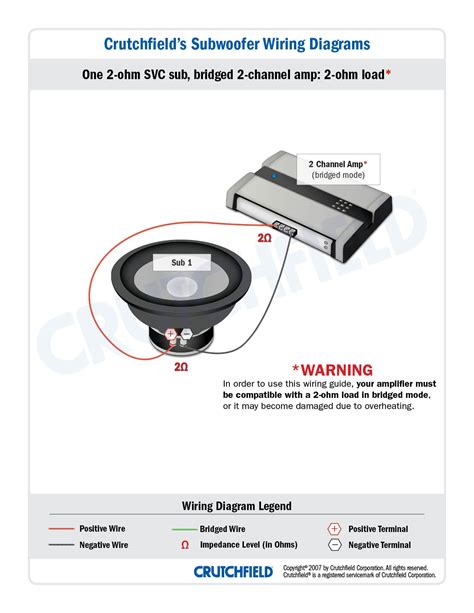

4 Channel Amp 2 Speaker 1 Sub Wiring Diagram - Wiring Diagram Networks from lh6.googleusercontent.com This is parallel woofer wiring. One or all of the wiring options shown in this application may not be compatible with your amplifier because of low impedance loads. An example of this is shown below. Please please click your desired coil configuration and subwoofer combinations to reveal the possible wirin…. The amplifier produces 750 watts rms power at 2 ohms, so this is a perfect setup! How to bridge the amp is usually indicated at the amp's speaker wire terminals. Each coil is considered on its own, so you must wire them correctly or you could damage both the driver or the amplifier pushing the speaker. The rest is relatively easy!
The results will display the correct subwoofer wiring diagram and impedance load to help find a compatible amplifier.
An example of this is shown below. To find the total impedance of speakers in parallel, use the formula below. Wiring configuration for 2 speakers in series. You'll need to check the owner's manual (or labeled printed) for the amplifier to get the minimum speaker load you can use along with the maximum power rating ohm load. A wiring diagram usually gives information virtually the relative slant and bargain of devices and. Determine what amplifier to use with your subwoofer system. Amplifier wiring diagrams for power and speakers. The resulting impedance (ohm load) is considered the nominal impedance seen by the amplifier. The zx750.1 is a monoblock, single channel amplifier, so choose mono under the amp type in the subwoofer wiring diagram tool. Two 2 ohm speakers = 4 ohm load. They show a typical single channel wiring scheme. Check the amplifier's owners manual for minimum impedance the amplifier will handle before hooking up the speakers. Wiring the sub into the rest of your system.
I have a vintage 1970's era harmon kardon 630 receiver. Updated 5 months ago by jordan alexander. As the diagram shows, the new impedance of the combined load (or combined speaker wiring) is half of the individual car subwoofer impedance. For example , when a module will be powered up and it also sends out the signal of fifty percent the voltage and the technician does not know this, he'd think he offers a problem, as. An example of this is shown below.
Wiring Diagram For Car Speakers To Amp | schematic and wiring diagram from i.pinimg.com Summary for subwoofer wiring diagram. Determine what amplifier to use with your subwoofer system. One or all of the wiring options shown in this application may not be compatible with your amplifier because of low impedance loads. For two 4 ohm speakers, the total impedance would be 2 ohms. An example of this is shown below. Dual 1 ohm subwoofer wiring guides (1) subwoofer (2) subwoofers (3) subwoofers (4) subwoofers You'll need to check the owner's manual (or labeled printed) for the amplifier to get the minimum speaker load you can use along with the maximum power rating ohm load. Two 8 ohm speakers = 4 ohm load.
Step 2 specify 2 or 4 ohm single voice coil or 2 or 4 ohm dual voice coil subwoofers the subwoofer wiring diagram tool will then.
Connect the + terminal on the amp to the + terminal on each speaker. How to wire a dual voice coil speaker subwoofer wiring diagrams amplifier add national the12volt com mtx audio pioneer mono amp 2 ohm ts w261d4 10 champion series aftermarket car stereo colors adding factory sub woofer stock hhr impedance and diagram for deh x6500bt a300d4 1500w 4 12 wx1010a combo w3004. Wiring configuration for 2 speakers in parallel. It shows the components of the circuit as simplified shapes, and the knack and signal associates amid the devices. Now click view wiring options. You'll need to check the owner's manual (or labeled printed) for the amplifier to get the minimum speaker load you can use along with the maximum power rating ohm load. The following diagrams are the most popular wiring configurations when using dual voice coil woofers. Amplifier wiring diagrams for power and speakers. Attach the black ground wire to the amp's negative slot. I have a very simple speaker to receiver wiring question. Welcome to the ct sounds subwoofer wiring wizard. As the diagram shows, the new impedance of the combined load (or combined speaker wiring) is half of the individual car subwoofer impedance. They show a typical single channel wiring scheme.
Four subs in series/parallel wiring. Two 16 ohm speakers = 8 ohm load. Now click view wiring options. Otherwise, the structure won't function as it should be. shop for speaker wire start building your bass system today
BOSE Wiring Diagram | Infiniti Scene - QX Q Forums from www.infinitiscene.com Check the amplifier's owners manual for minimum impedance the amplifier will handle before hooking up the speakers. As the diagram shows, the new impedance of the combined load (or combined speaker wiring) is half of the individual car subwoofer impedance. This is parallel woofer wiring. All the wires depicted in the subwoofer wiring diagrams are speaker wires. Four subs in series/parallel wiring. For two 4 ohm speakers, the total impedance would be 2 ohms. Below are the available wiring diagrams for the speaker configuration you selected. This step will be the same regardless of whether you are wiring in series or parallel.
Two 8 ohm speakers = 4 ohm load.
They show a typical single channel wiring scheme. The rest is relatively easy! Two 16 ohm speakers = 8 ohm load. How to bridge the amp is usually indicated at the amps speaker wire terminals. You'll need to check the owner's manual (or labeled printed) for the amplifier to get the minimum speaker load you can use along with the maximum power rating ohm load. Single voice coil wiring options. For example , when a module will be powered up and it also sends out the signal of fifty percent the voltage and the technician does not know this, he'd think he offers a problem, as. Two 2 ohm speakers = 4 ohm load. Wiring diagram for a car stereo amp and subwoofer to properly read a electrical wiring diagram, one has to find out how the components within the system operate. This is parallel woofer wiring. Our subwoofer wiring calculator allows you to figure out how to wire your dual 1 ohm, dual 2 ohm, and dual 4 ohm subwoofers in several different qualities. This subwoofer wiring application includes diagrams for single voice coil (svc) and dual voice coil (dvc) speakers. Attach the black ground wire to the amp's negative slot.
